Description

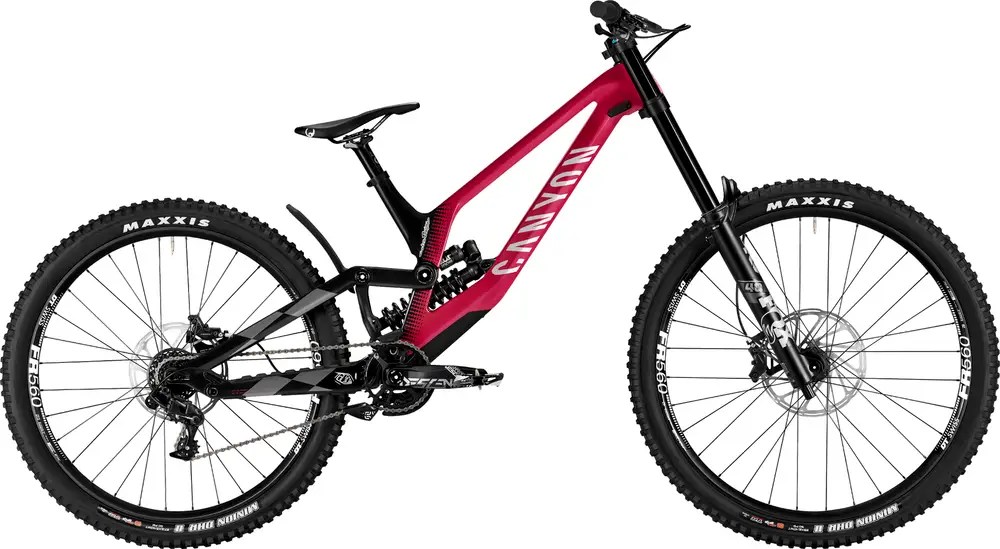

A 29″ carbon frame full suspension downhill bike with ultra high-end components.
| Frame |
Canyon Sender CFR, Super-capable, highly robust downhill race frame meeting our toughest category 5 testing standards., Axle dimension: 12X157 mm, Material: Carbon (CFR) BB Standard: BSA, 83mm, Threaded Colors: Cfr Green; Troy Lee; Underdog Black |
|---|---|
| Fork |
FOX 40 Factory GRIP2, Axle dimension: 20×110 mm, Stanchion Diameter: 40 mm, Travel: 203 mm, Fork steer tube diameter: 1 1/8″, Offset: 52 mm, Weight: 2.82 kg Travel: 203mm Spring Type: Air |
| Shock |
FOX DHX2 Factory, Spring: 400 Travel: 200mm Spring Type: Coil |
| Bottom Bracket |
SRAM BSA DUB, Bottom bracket standard: BSA 83, Weight: 120 g |
| Headset |
Acros AZX-227 |
| Stem |
Canyon G5, G5 aluminium stem for double-crown forks. Developed with Canyon downhill pros, proven on the world’s toughest stages. Length: 45 mm., Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar |
Canyon G5, G5 parts are built for all-out downhill action. Super-robust aluminium handlebar, tested to category 5 standards and race-proven., Material: Aluminium, Rise: 20 mm |
| Saddle |
Ergon SMD20, Weight: 315 g |
| Seatpost |
Canyon G5, Canyon G5 aluminium seatpost. Length: 300 mm., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 270 g Type: Rigid |
| Pedals |
None included |
| Grips |
Canyon G5 |
| Rear Derailleur |
SRAM X01 DH, Cage length: medium, Weight: 277 g |
|---|---|
| Crank |
SRAM X01 DH, Number of chainrings: 1 |
| Shifters |
SRAM X01 DH, Weight: 131 g |
| Cassette |
SRAM XG-795 DH 10-24 7s, Number of sprockets: 7, Range: 10-24 7S |
| Chain |
SRAM Connection Link 11s |
| Chain Guide |
e13 Vario Compact Slider DMB |
| Brakes |
SRAM Code RSC Type: SRAM Code RSC Hydraulic Disc |
| Rims |
DT Swiss FR 560 240 EXP, Axle dimension: 20×110 mm, Rotor mount: IS 6-bolt, Rim height: 21 mm, Inner width: 30 mm, Rim material: Aluminium, Weight: 1.06 kg | DT Swiss FR560 240 EXP, Axle dimension: 12X157 mm, Rotor mount: IS 6-bolt, Rim height: 21 mm, Inner width: 30 mm, Rim material: Aluminium, Weight: 1.09 kg |
|---|---|
| Tires |
Maxxis Minion DHR II 2.4″ Wide Trail, Width: 2.4″, Weight: 950 g |
| Disc Rotors |
SRAM Centerline, Size: 220 mm, Weight: 223 g |
