Description

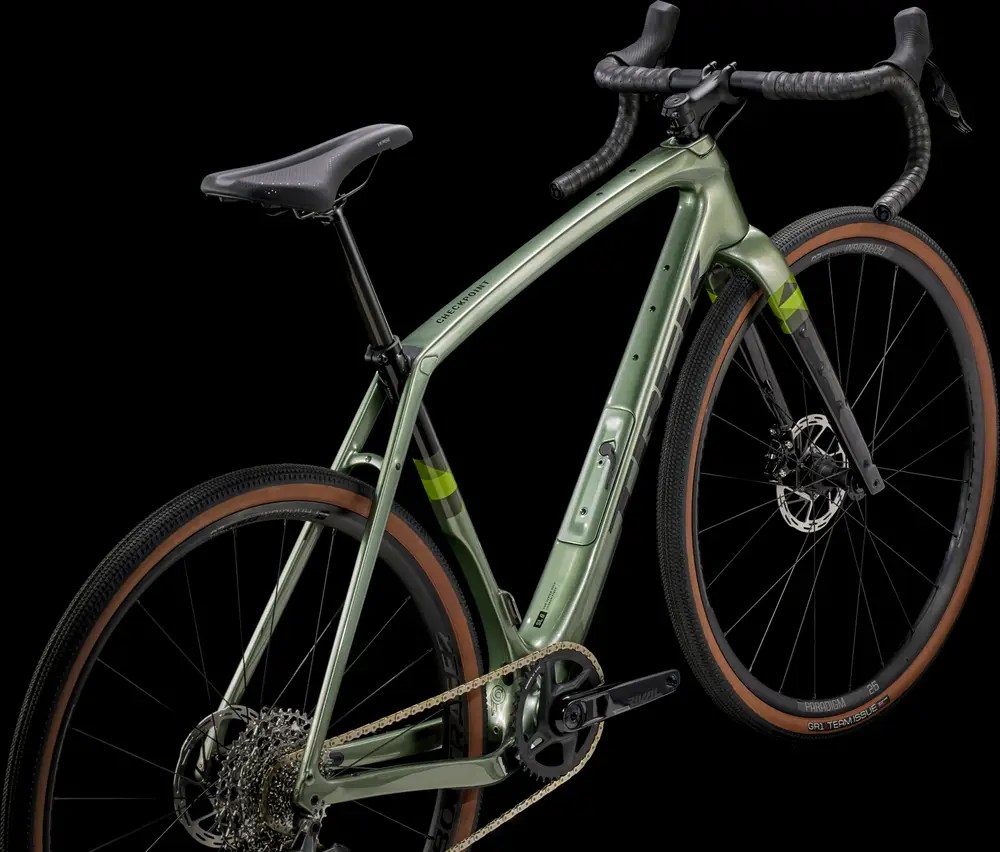

A carbon frame gravel bike with upper mid-range components and sram rival hydraulic disc brakes.
| Frame |

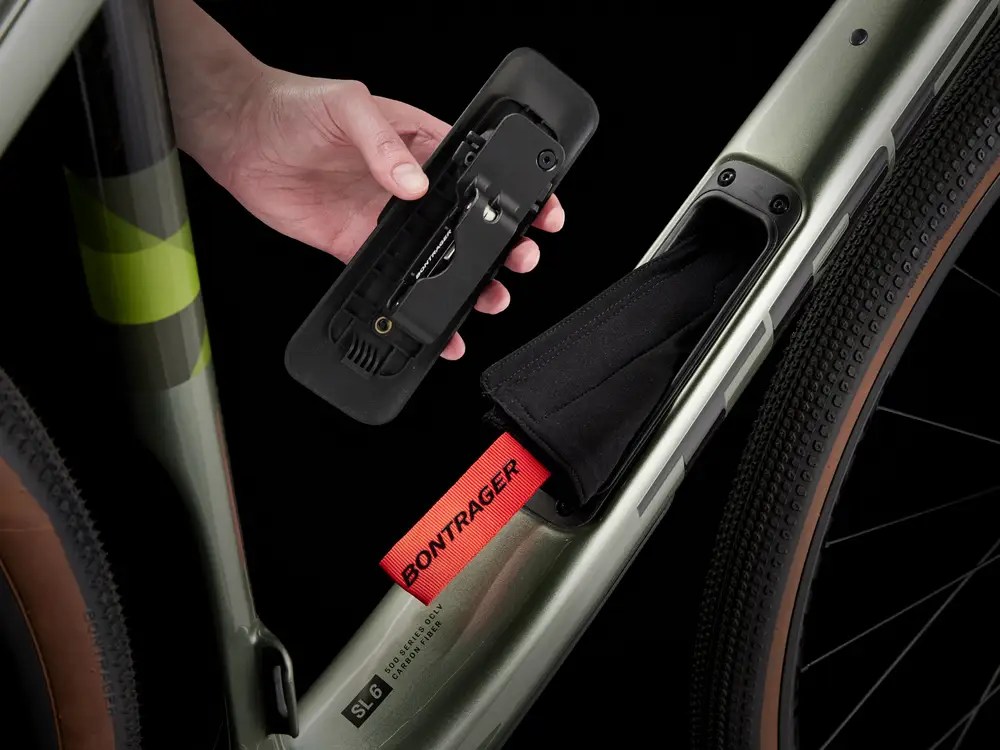

500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142×12 mm thru axle BB Standard: T47, Threaded Color: Lichen Green |
|---|---|
| Fork |
Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Bottom Bracket |
SRAM DUB, T47 threaded, internal bearing |
| Stem |
Size: 49, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: 52, 54, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: 56, 58, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: 61, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |

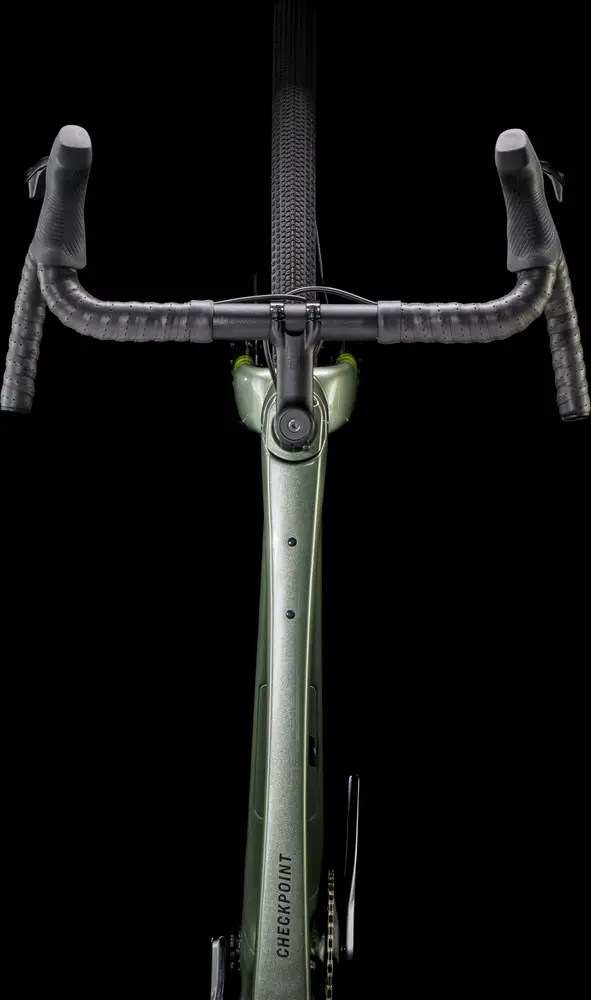

| Handlebar |
Size: 49, Bontrager Elite Gravel, 38 cm width; Size: 52, Bontrager Elite Gravel, 40 cm width; Size: 54, 56, Bontrager Elite Gravel, 42 cm width; Size: 58, 61, Bontrager Elite Gravel, 44 cm width |
| Saddle |
Size: 49, 52, Bontrager Verse Comp, steel rails, 155 mm width; Size: 54, 56, 58, 61, Bontrager Verse Comp, steel rails, 145 mm width |
| Seatpost |
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length Type: Rigid |
| Rear Derailleur |
SRAM Rival XPLR eTap AXS, 44T max cog |
|---|---|
| Crank |
Size: 49, SRAM Rival, 40T, DUB Wide, 165 mm length; Size: 52, SRAM Rival, 40T, DUB Wide, 170 mm length; Size: 54, 56, SRAM Rival, 40T, DUB Wide, 172.5 mm length; Size: 58, 61, SRAM Rival, 40T, DUB Wide, 175 mm length |
| Shifters |
SRAM Rival eTap AXS, 12-speed |
| Cassette |
SRAM XG-1251, 10-44, 12-speed |
| Chain |
SRAM Rival, 12 speed |
| Brakes |
SRAM Rival hydraulic disc Type: SRAM Rival Hydraulic Disc |
| Rims |
Front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100×12 mm thru axle, Rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142×12 thru axle |
|---|---|
| Tires |
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700×40 mm |
| Disc Rotors |
SRAM Paceline, rounded, CentreLock, 160 mm |
