Description

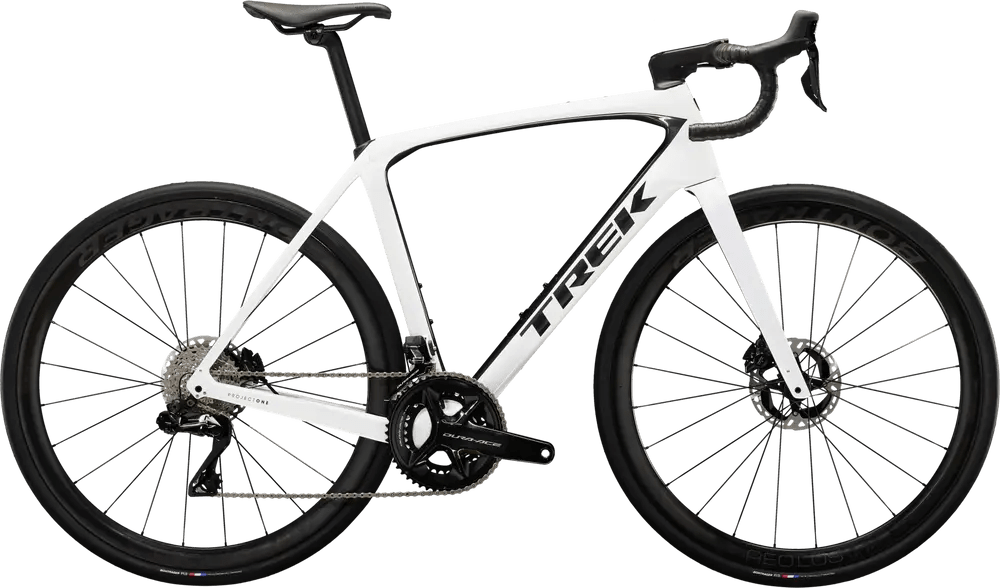

A carbon frame endurance bike with ultra
| Frame |
800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle BB Standard: T47, Threaded Tire Clearance: 38c Colors: Trek Black; Deep Smoke; Axinite Flip / Trek Black; Metallic Red Smoke to Blue Smoke Fade; Metallic Red Smoke to Red Carbon Smoke; Crystal White |
|---|---|
| Fork |
Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Bottom Bracket |
Praxis, T47 threaded, internal bearing |
| Stem |
Size: 47, Trek RCS Pro, -7 degree, 70mm length; Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length |

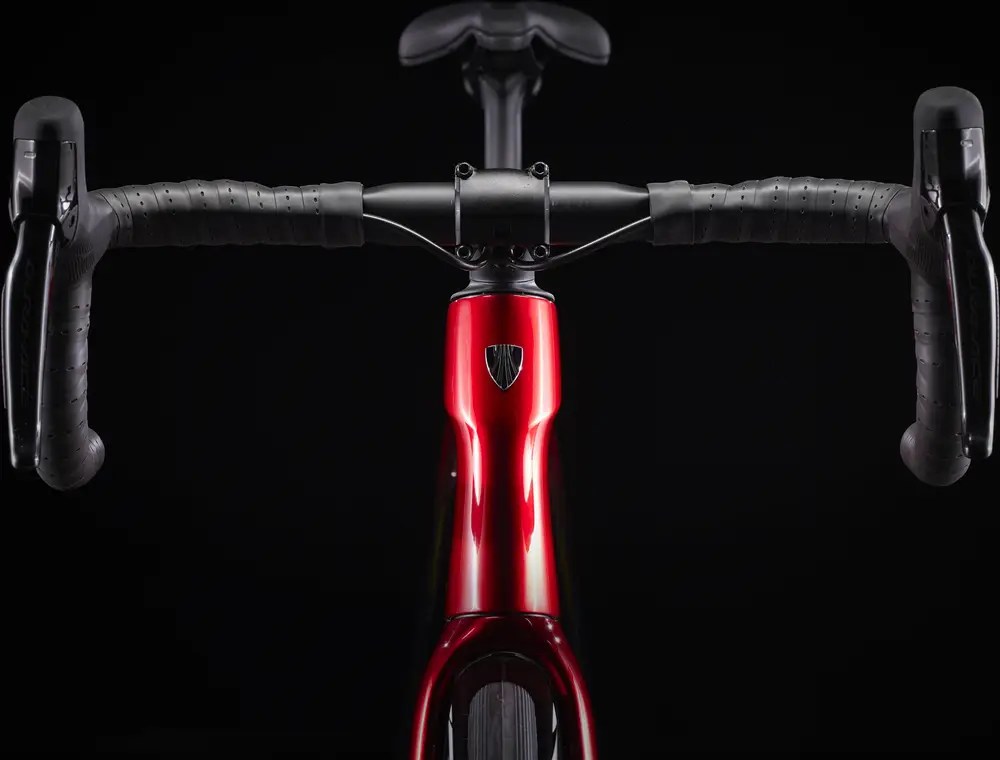

| Handlebar |
Size: 47, Bontrager Pro IsoCore VR-SF, 38cm; Size: 50, 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 60, 62, Bontrager Pro IsoCore VR-SF, 44cm |
| Saddle |
Size: 47, 50, 52, Verse Short Pro, carbon rails, 155mm width; Size: 54, 56, 58, 60, 62, Verse Short Pro, carbon rails, 145mm width |
| Seatpost |
Size: 47, 50, 52, 54, 56, KVF aero carbon seatpost, 20mm offset, 280mm length; Size: 58, 60, 62, KVF aero carbon seatpost, 20mm offset, 320mm length Type: Rigid |
| Rear Derailleur |
Shimano Dura-Ace R9250 Di2, 34T max cog |
|---|---|
| Front Derailleur |
Shimano Dura-Ace R9250 Di2, braze-on, down swing |
| Crank |
Size: 47, 50, Shimano Dura-Ace R9200, 50/34, 165mm length; Size: 50, 52, 54, Shimano Dura-Ace R9200, 50/34, 170mm length; Size: 54, 56, 58, Shimano Dura-Ace R9200, 50/34, 172.5mm length; Size: 58, 60, 62, Shimano Dura-Ace R9200, 50/34, 175mm length |
| Shifters |
Shimano Dura-Ace R9270 Di2, 12 speed |
| Cassette |
Shimano Dura-Ace R9200, 11-34, 12 speed |
| Chain |
Shimano Dura-Ace/XTR M9100, 12 speed |
| Brakes |
Shimano Dura-Ace hydraulic disc, flat mount Type: Shimano Dura-Ace Hydraulic Disc |
| Rims |
Front: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
|---|---|
| Tires |
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
| Disc Rotors |
Size: 47, 50, 52, 54, 56, 58, 60, 62, Shimano CL900, centerlock, 160mm; Size: 47, 50, 52, 54, 56, 58, 60, 62, Shimano MT900, centerlock, 160mm |
high-end components and shimano dura-ace hydraulic disc brakes.
