Description

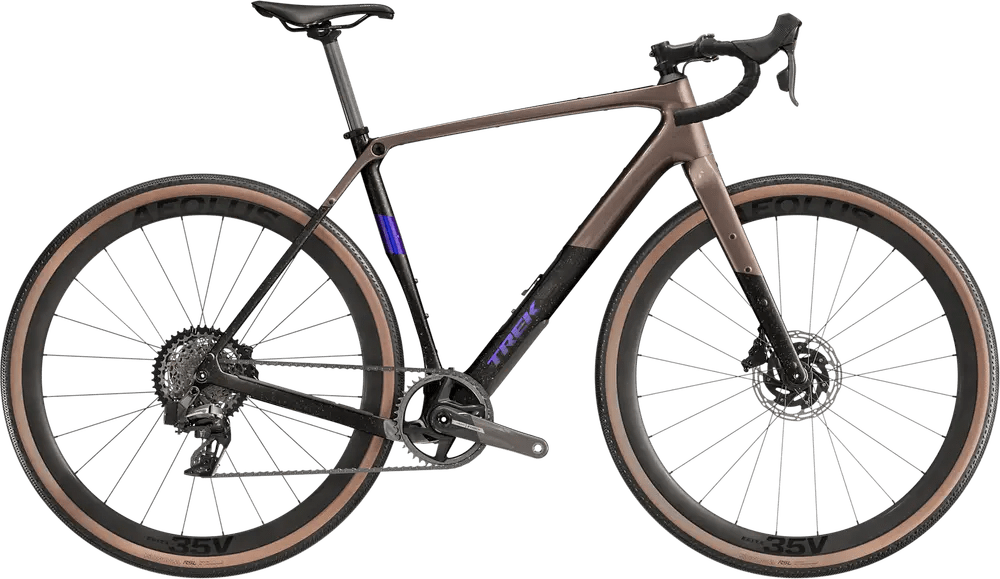

A carbon frame gravel bike with high-end components and sram force hydraulic disc brakes.
| Frame |
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle BB Standard: T47, Threaded Hanger Standard: UDH Tire Clearance: 50c Colors: Bronze Age / Carbon Smoke Matte; Baja Yellow Matte / Drab Olive Matte |
|---|---|
| Fork |
Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle |
| Bottom Bracket |
SRAM DUB Wide, T47 threaded, internal bearing |
| Stem |
Size: XS, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: S, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: M, ML, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: L, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Handlebar |
Size: XS, Bontrager Pro Gravel, 40cm width; Size: S, M, Bontrager Pro Gravel, 42cm width; Size: ML, L, Bontrager Pro Gravel, 44cm width; Size: XL, Bontrager Pro Gravel, 46cm width |
| Saddle |
Size: XS, S, Verse Short Elite, hollow magnesium rails, 155mm width; Size: M, ML, L, XL, Verse Short Elite, hollow magnesium rails, 145mm width |
| Seatpost |
Bontrager carbon, 27.2mm, 8mm offset, 330mm length Type: Rigid |
| Rear Derailleur |
SRAM Force XPLR AXS D2, 44T max cog |
|---|---|
| Crank |
Size: XS, S, SRAM Force 1 D2, 40T, DUB Wide, 165mm length; Size: M, SRAM Force 1 D2, 40T, DUB Wide, 170mm length; Size: ML, L, SRAM Force 1 D2, 40T, DUB Wide, 172.5mm length; Size: XL, SRAM Force 1 D2, 40T, DUB Wide, 175mm length |
| Shifters |
SRAM Force AXS D2, 12 speed |
| Cassette |
SRAM XG-1271, 10-44, 12 speed |
| Chain |
SRAM Force, 12 speed |
| Brakes |
SRAM Force AXS hydraulic disc, flat mount Type: SRAM Force Hydraulic Disc |
| Rims |
Front: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle |
|---|---|
| Front Hub |
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
| Tires |
Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm |
| Disc Rotors |
SRAM CenterLine X, centerlock, round edge, 160mm |
