Description
A 27.5″ carbon frame full suspension enduro e-bike with high-end components.
| Frame |
OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel Hanger Standard: UDH Tire Clearance: 2.6″ Colors: Deep Smoke; Pennyflake |
|---|---|
| Fork |
Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt-X axle, 160mm travel Travel: 160mm Spring Type: Air |
| Shock |
Fox Performance Elite Float X, 2-position damper, 205mm x 65mm Travel: 160mm |
| Headset |
Integrated cartridge bearing, 1-1/8″ top, 1.5″ bottom, angle adjust cup compatible |
| Stem |
Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length |
| Handlebar |
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| Saddle |
Verse Short Comp, steel rails, 145mm width |
| Seatpost |
Size: S, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length; Size: M, L, XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length; Size: L, XL, Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 515mm length Type: Dropper |
| Pedals |
VP-536 nylon platform |
| Grips |
Bontrager XR Trail Elite, nylon lock-on |

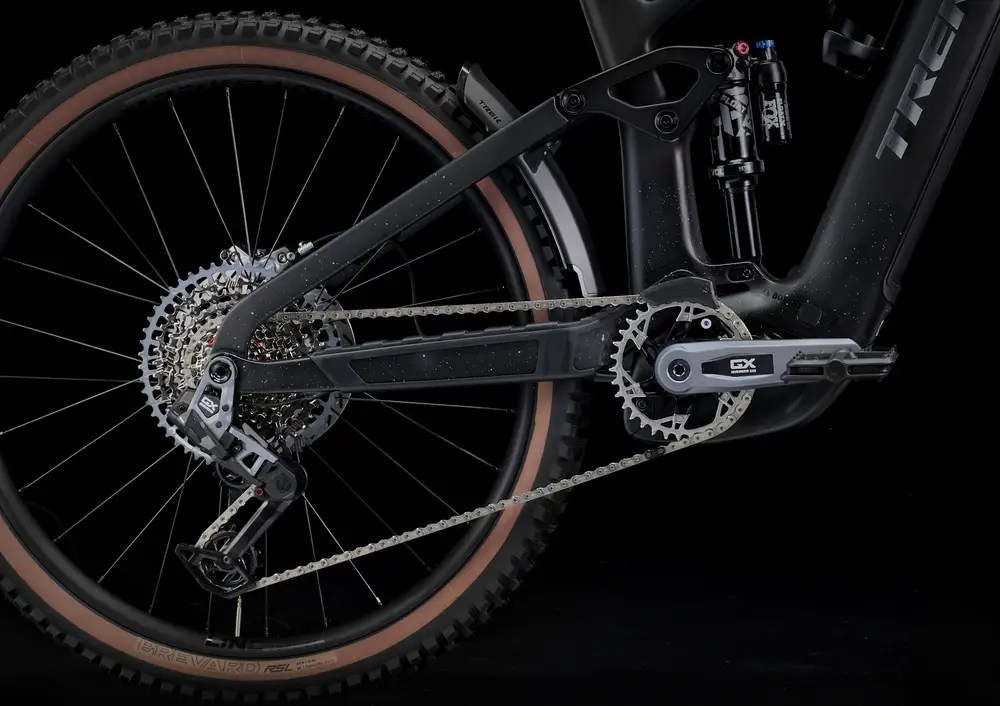

| Rear Derailleur |
SRAM GX Eagle AXS, T-Type |
|---|---|
| Crank |
SRAM GX, 160mm length |
| Shifters |
SRAM AXS POD |
| Cassette |
SRAM Eagle XS-1275, T-Type, 10-52, 12 speed |
| Chain |
SRAM GX Eagle, T-Type, 12 speed |
| Brakes |
SRAM CODE Bronze 4-piston hydraulic disc Type: SRAM Hydraulic Disc |
| Rims |
Front: Size: S, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5″; Size: M, L, XL, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29″, Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5″ |
|---|---|
| Front Hub |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Tires |
Size: S, M, L, XL, Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5×2.50″; Size: M, L, XL, Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29×2.50″ |
| Disc Rotors |
Size: S, M, L, XL, SRAM HS2, 6-bolt, 200mm; Size: S, M, L, XL, SRAM HS2, 6-bolt, 220mm |
| Motor |
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
|---|---|
| Battery |
Bosch PowerTube 800Wh, smart system Recycling Program: |
| Remote |
Bosch System Controller BRC3100, smart system |
| Charger |
Bosch standard 4A, 110V, smart system |
| Fenders |
Trek 27.5″ custom fender |
|---|
