Description
A 29″ carbon frame electronic full suspension enduro bike with high-end components.
| Frame |
OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, Carbon Armor, shuttle guard, threaded BB, ISCG 05, 34.9mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160mm travel; OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, Carbon Armor, shuttle guard, threaded BB, ISCG 05, 34.9mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160mm travel BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.5″ Color: Quicksand/ Battleship Blue |
|---|---|

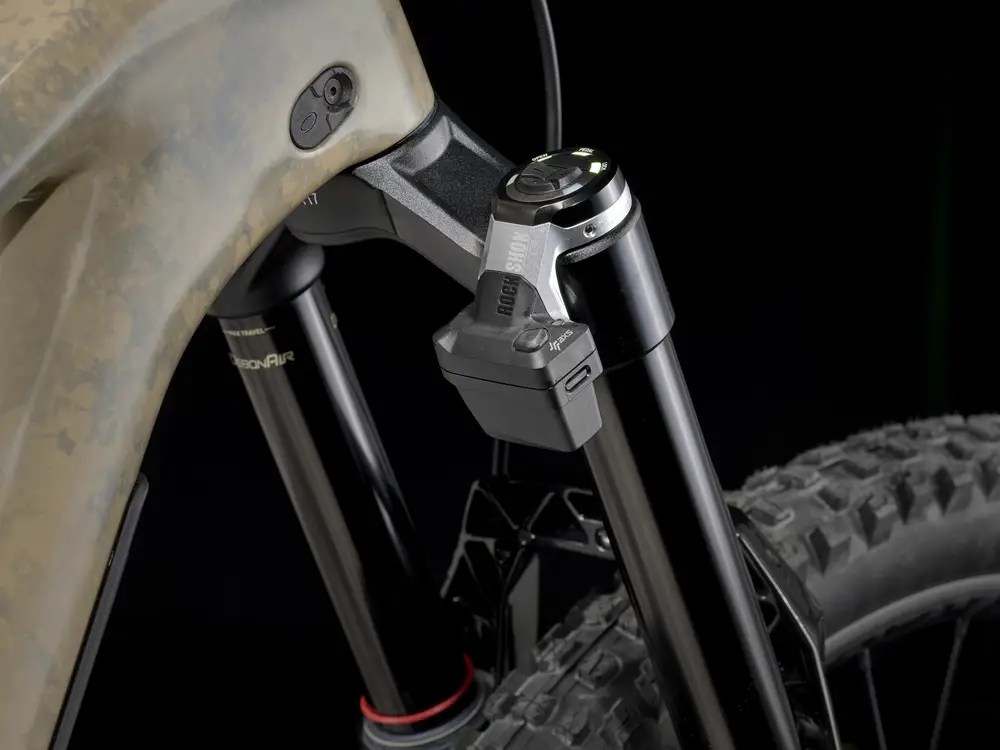

| Fork |
RockShox ZEB Ultimate, Flight Attendant, DebonAir spring, Charger 2.1 RCT3 AXS damper, 1.5” tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 170mm travel Travel: 170mm Spring Type: Air |

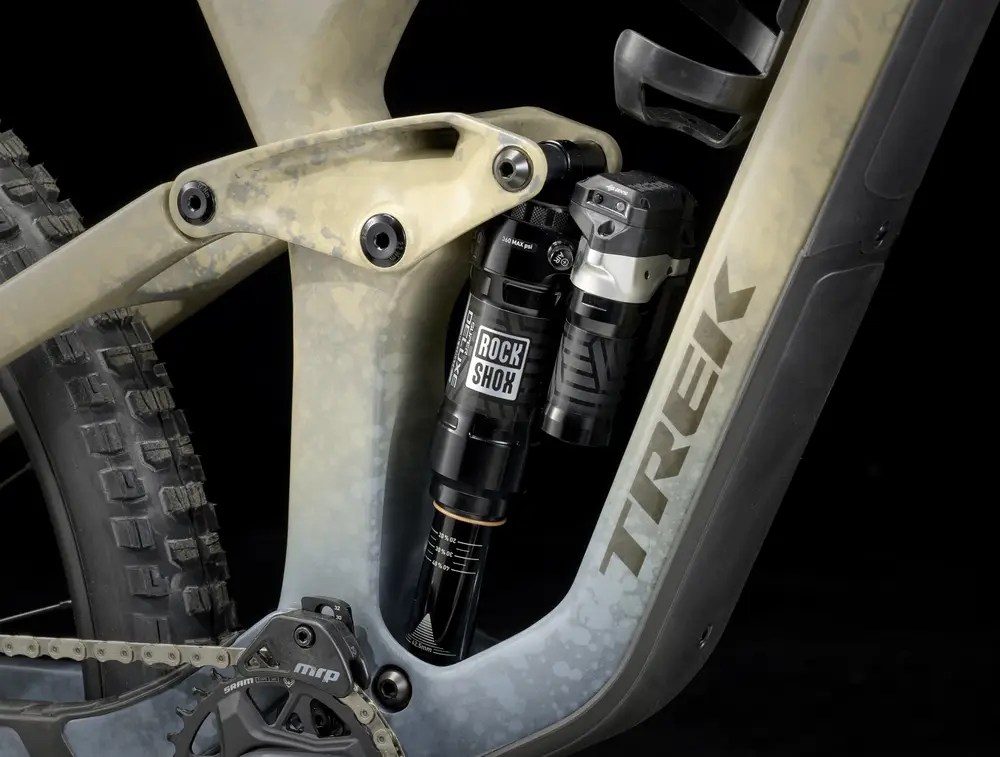

| Shock |
RockShox Super Deluxe Ultimate Flight Attendant, 230mm x 62.5mm Travel: 160mm |
| Bottom Bracket |
SRAM DUB MTB Wide, 73mm, BSA threaded |
| Headset |
Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8” top, 1.5” bottom |
| Stem |
Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length |
| Handlebar |
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| Saddle |
Bontrager Arvada Elite, stainless steel rails, 138mm width |
| Seatpost |
Size: S, RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length; Size: M, ML, RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length; Size: L, XL, RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length Type: Dropper |
| Grips |
Bontrager XR Trail Pro, alloy lock-on |

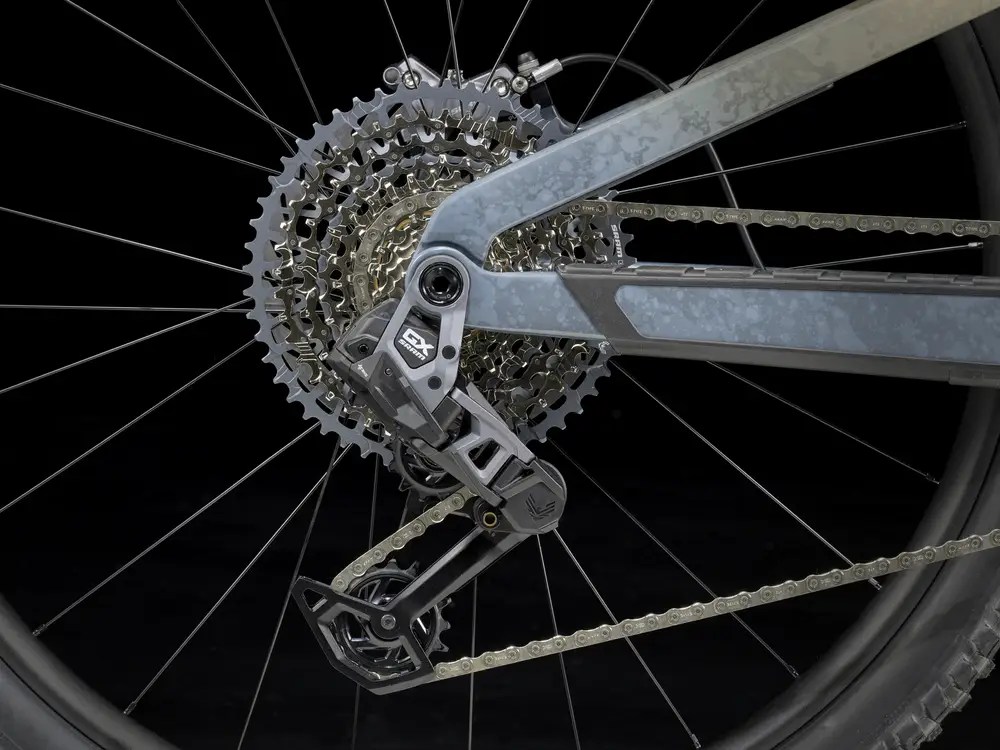

| Rear Derailleur |
SRAM GX Eagle AXS, T-Type |
|---|---|
| Crank |
SRAM GX Eagle, DUB MTB Wide, T-Type, 30T, 55mm chainline, 165mm length |
| Shifters |
Size: S, M, ML, L, XL, SRAM AXS POD; Size: S, M, ML, L, XL, SRAM AXS POD, paired with dropper |
| Cassette |
SRAM Eagle XS-1275, T-Type, 10-52, 12 speed |
| Chain |
SRAM GX Eagle, T-Type, 12 speed |

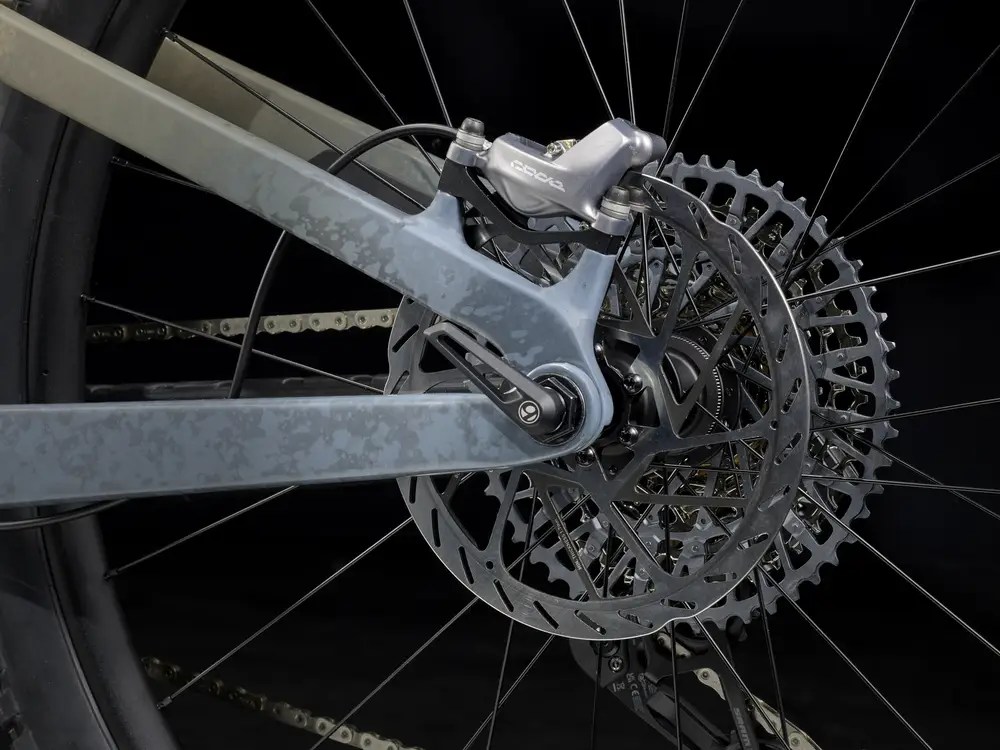

| Brakes |
SRAM CODE Bronze 4-piston hydraulic disc Type: SRAM Hydraulic Disc |
| Rims |
Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29”, Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle |
|---|---|
| Tires |
Size: S, M, ML, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50”; Size: S, M, ML, L, XL, Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50” |
| Disc Rotors |
SRAM HS2, 6-bolt, 200mm |
