Description
An aluminum frame endurance bike with upper mid-range components and shimano 105 hydraulic disc brakes.
| Frame |
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle BB Standard: BSA, 68mm, Threaded Hanger Standard: UDH Colors: Matte Trek Black; Lichen Green |
|---|---|
| Fork |
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Bottom Bracket |
Size: 49, 52, 54, 56, 58, 61, Shimano RS501 BSA; Size: 49, 52, 54, 56, 58, 61, Shimano RS500, 68mm, threaded external |
| Stem |
Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
| Handlebar |
Size: 49, 52, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width; Size: 49, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width; Size: 54, 56, 58, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width; Size: 54, 56, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 61, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width; Size: 61, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width |
| Saddle |
Verse Short, steel rails, 145mm width |
| Seatpost |
Size: 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length Type: Rigid |
| Rear Derailleur |
Shimano 105 R7100, 36T max cog |
|---|---|
| Front Derailleur |
Shimano 105 R7100, 31.8mm clamp, down swing |
| Crank |
Size: 49, 52, Shimano 105 R7100, 50/34, 170mm length; Size: 54, 56, Shimano 105 R7100, 50/34, 172.5mm length; Size: 58, 61, Shimano 105 R7100, 50/34, 175mm length |
| Shifters |
Shimano 105 R7120, 12 speed |
| Cassette |
Shimano 105 7101, 11-34, 12 speed |
| Chain |
Shimano SLX M7100, 12 speed |
| Brakes |

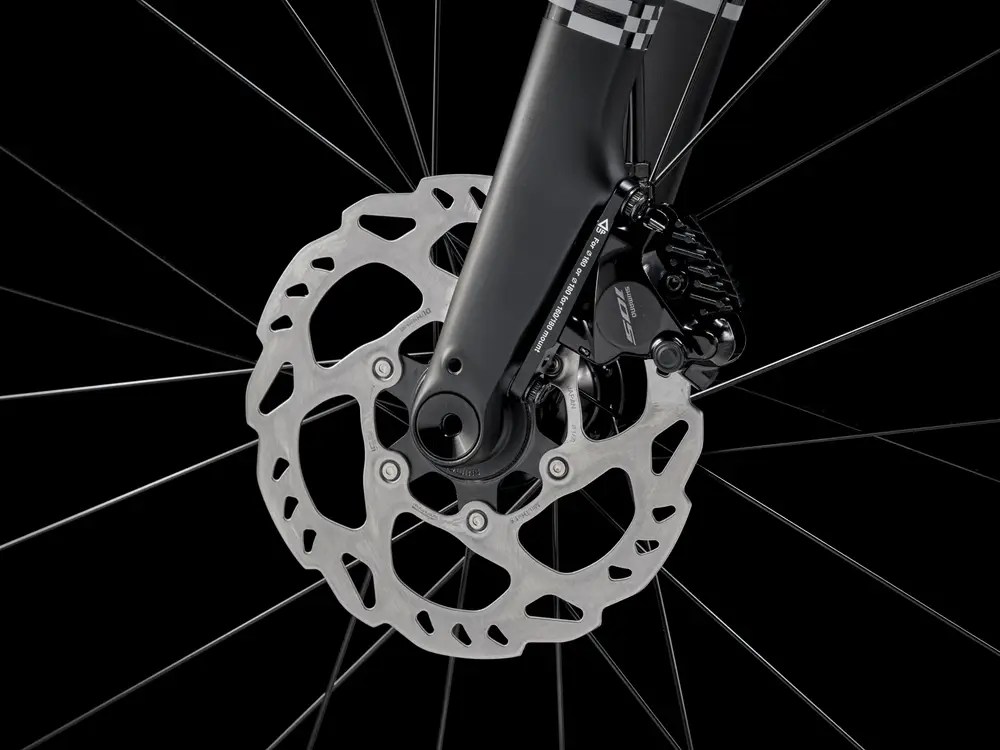

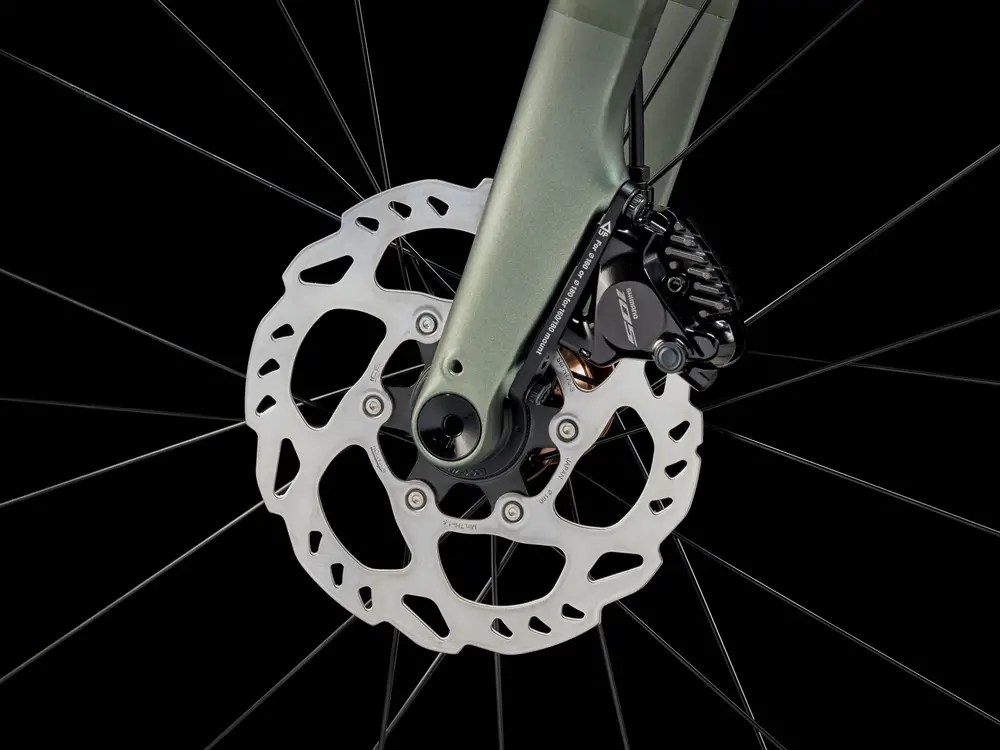

Shimano 105 hydraulic disc, flat mount Type: Shimano 105 Hydraulic Disc |
| Rims |
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve |
|---|---|
| Spokes |
14g stainless steel, black |
| Front Hub |
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
| Rear Hub |
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Tires |
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm |
| Disc Rotors |
Shimano RT70, centerlock, 160mm |
