Description

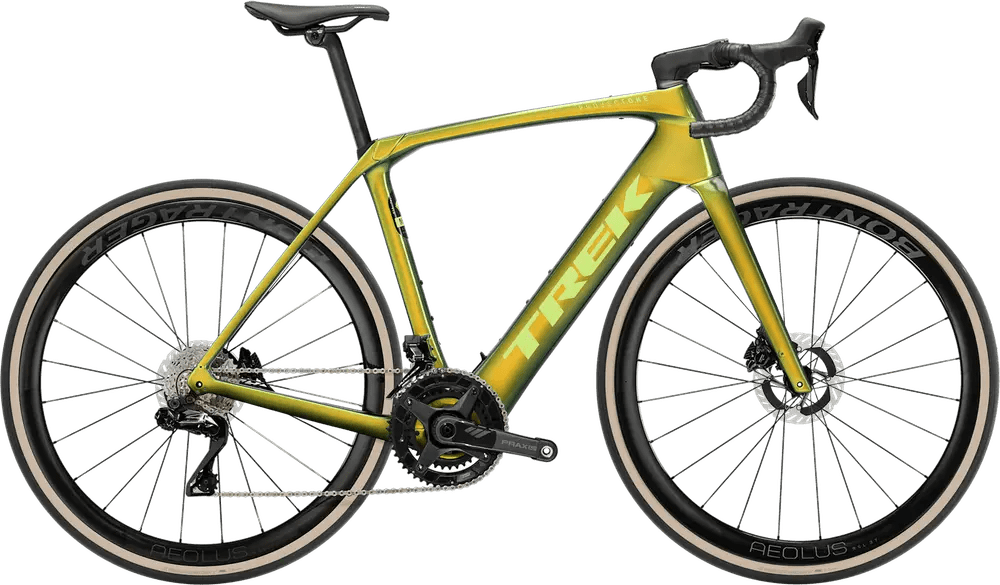

A carbon frame endurance e-bike with ultra high-end components and shimano dura-ace hydraulic disc brakes.
| Frame |
800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle Tire Clearance: 40c Colors: Matte Deep Smoke; Gecko Phaze; Metallic Red Smoke / Red Carbon Smoke; Era White / Supernova Marble |
|---|---|
| Fork |
Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Stem |
Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length |
| Handlebar |
Size: 50, 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 60, 62, Bontrager Pro IsoCore VR-SF, 44cm |
| Saddle |
Verse Short Pro, carbon rails, 145mm width |
| Seatpost |
Size: 50, 52, 54, 56, KVF aero carbon seatpost, 20mm offset, 280mm length; Size: 58, 60, 62, KVF aero carbon seatpost, 20mm offset, 320mm length Type: Rigid |
| Rear Derailleur |
Shimano Dura-Ace R9250 Di2, 34T max cog |
|---|---|
| Front Derailleur |
Shimano Dura-Ace R9250 Di2, braze-on, down swing |
| Crank |
Size: 50, 52, Praxis Carbon, 165mm length; Size: 54, 56, Praxis Carbon, 170mm length; Size: 58, 60, 62, Praxis Carbon, 172.5mm length |
| Shifters |
Shimano Dura-Ace R9270 Di2, 12 speed |
| Cassette |
Shimano Dura-Ace R9200, 11-34, 12 speed |
| Chain |
Shimano Dura-Ace/XTR M9100, 12 speed |
| Brakes |
Shimano Dura-Ace hydraulic disc, flat mount Type: Shimano Dura-Ace Hydraulic Disc |
| Rims |
Front: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
|---|---|
| Tires |
Bontrager Kwaremont RSL, tubeless ready, folding bead, dual compound, 320 tpi, 700x32mm |
| Disc Rotors |
Shimano CL900, centerlock, 160mm |
| Motor |
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
|---|---|
| Battery |
TQ 360Wh Recycling Program: |
| Display |
TQ LED display with Bluetooth & ANT+ connectivity |
| Charger |
TQ 4A charger |
