Description

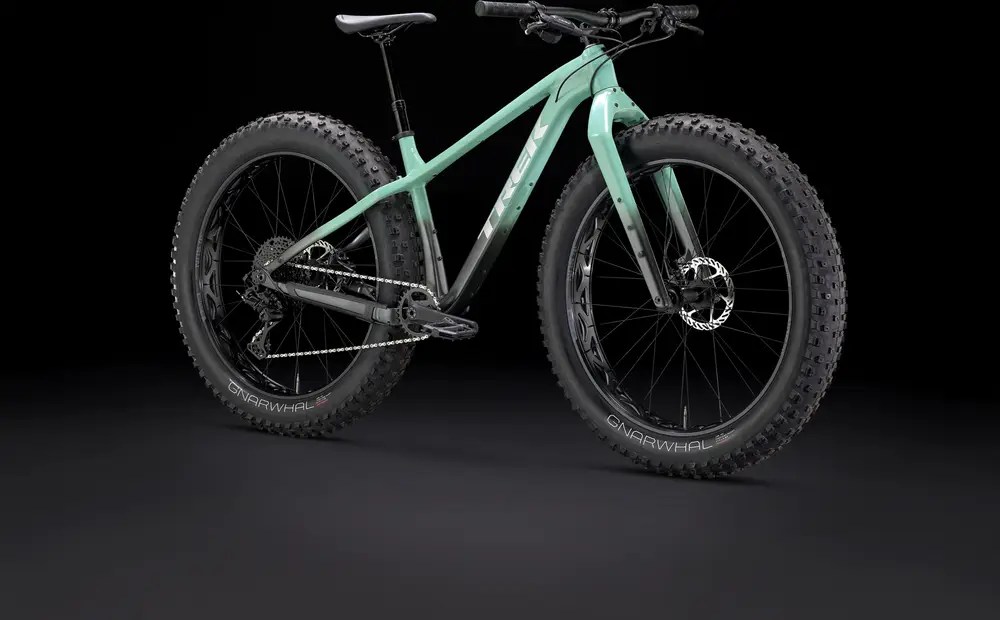

A 27.5″ aluminum frame rigid fat bike with upper mid-range components.
| Frame |
Alpha Platinum Aluminum, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube fender mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur & dropper post routing, 100mm threaded BB, UDH, 197x12mm BB Standard: BSA, 100mm, Threaded Hanger Standard: UDH Tire Clearance: 4.5″ Color: Satin Blue Sage to Lithium Grey Fade |
|---|---|
| Fork |
Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle |
| Bottom Bracket |
FSA BB-7100, 100mm, BSA threaded |
| Headset |
FSA IS-2, 1-1/8” top, 1.5” bottom |
| Stem |
Size: S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: L, XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle |
Bontrager Verse P3, steel rails |
| Seatpost |
Size: S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length; Size: L, XL, TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length Type: Dropper |
| Pedals |
VP-536 nylon platform |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
| Rear Derailleur |
microSHIFT Advent X RD-M6205AM, 48T max cog |
|---|---|
| Crank |
Size: S, M, L, FSA Comet, 30T, 170mm length; Size: XL, FSA Comet, 30T, 175mm length |
| Shifters |
microSHIFT Advent X SL-M9605, 10 speed |
| Cassette |
microSHIFT Advent X, 11-48, 10 speed |
| Chain |
KMC X10, 10 speed |
| Brakes |
SRAM Level hydraulic disc Type: SRAM Level Hydraulic Disc |
| Rims |
SUNRingle Mulefut 80 SL, 32-hole cutout |
|---|---|
| Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle |
| Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10 freehub, 197x12mm thru axle |
| Tires |
Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5×4.50” |
| Disc Rotors |
Avid G2 CleanSweep, 6-bolt, 160mm |
