Description

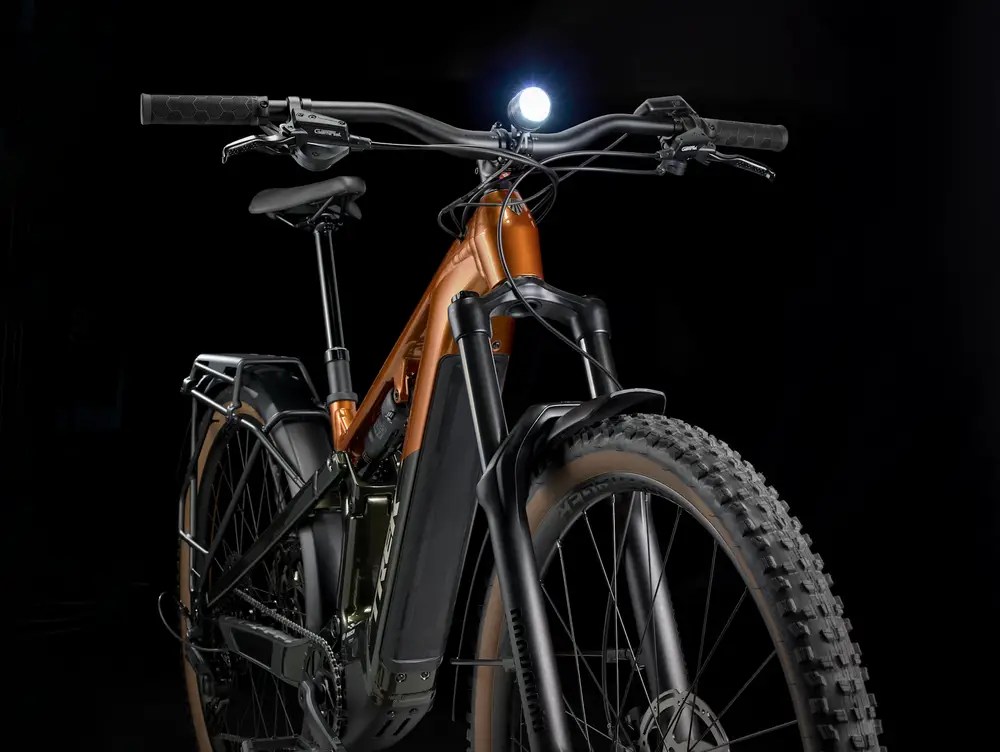

A 27.5″ / 29″ aluminum frame full suspension trail e-bike with mid-range components.
| Frame |
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered headtube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, rack and mudguard mounts, Boost 148, 120 mm travel BB Standard: Bosch, Press Fit Hanger Standard: UDH Tire Clearance: 2.5″ Colors: Mercury / Dark Web; Pennyflake / Black Olive |
|---|---|
| Fork |
RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, mudguard mounts, 130 mm travel Travel: 130mm Spring Type: Air |
| Shock |
RockShox Deluxe Select R, 210×50 mm Travel: 120mm |
| Bottom Bracket |
Bosch, press-fit |
| Stem |
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Handlebar |
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| Saddle |
Bontrager Commuter Comp |
| Seatpost |
Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length; Size: M, L, XL, Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length Type: Dropper |
| Pedals |
VP-536 nylon platform |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
| Rear Derailleur |
Shimano CUES U6000 GS |
|---|---|
| Crank |
FSA Bosch CK-220, 36T ring, 165 mm length |
| Shifters |
Shimano U6000, 10-speed |
| Cassette |
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain |
Shimano LG500, 9/10/11-speed |
| Brakes |
Tektro Gemini SL 4 piston hydraulic brake Type: Tektro Gemini Hydraulic Disc |
| Rims |
Size: S, M, L, XL, Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve; Size: S, M, L, XL, Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
|---|---|
| Spokes |
14 g stainless steel, black |
| Front Hub |
Shimano TC500 alloy, CentreLock, 110×15 mm thru axle |
| Rear Hub |
Shimano TC500 alloy, CentreLock, 148×12 mm thru axle |
| Tires |
Size: S, Bontrager Gunnison Pro XR, Tubeless-Ready, wire bead, 60 tpi, 27.5×2.40″; Size: M, L, XL, Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.40″ |
| Disc Rotors |
Tektro, CentreLock, 203 mm |
| Motor |
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
|---|---|
| Battery |
Bosch PowerTube 600 Wh, smart system Recycling Program: ♻️ Call2Recycle |
| Display |
Bosch Purion 200 |
| Charger |
Bosch standard 2A, 230V, smart system |
| Lights |
Size: S, M, L, XL, Supernova Mini 3 pure, LED, headlight; Size: S, M, L, XL, Supernova TL3 Mini, LED |
|---|---|
| Fenders |
Size: S, Trek Powerfly 27.5″ custom fender; Size: M, L, XL, Trek Powerfly 29″ custom fender |
| Racks |
MIK-compatible alloy rear rack |
