Description
A 27.5″ / 29″ aluminum frame full suspension trail e-bike with mid-range components.
| Frame |

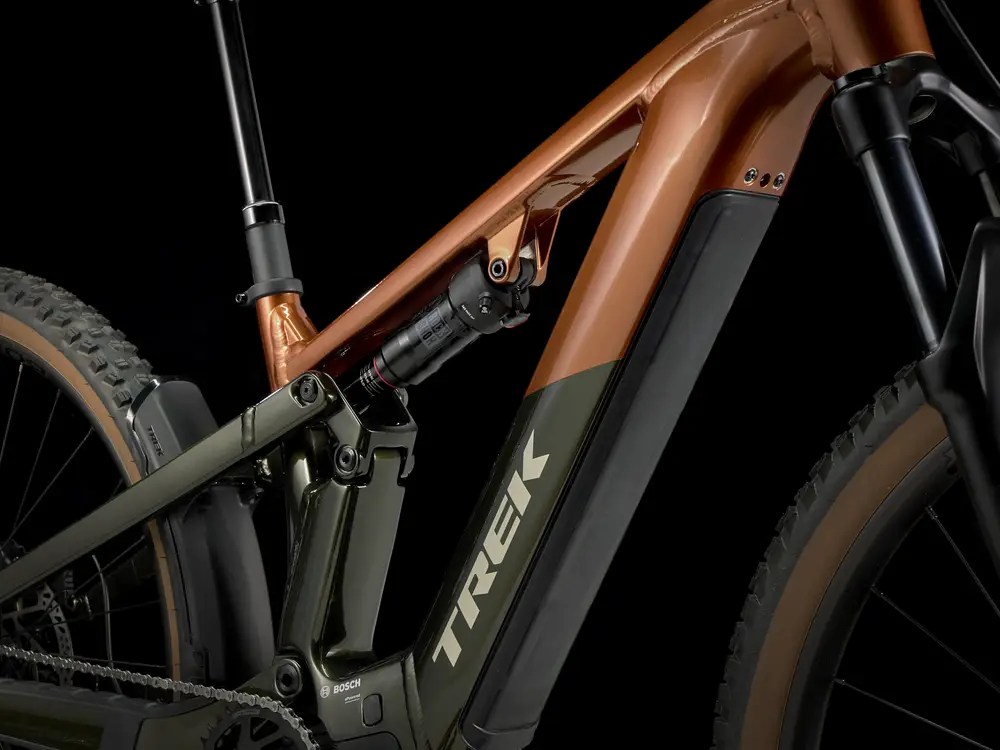

Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered headtube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH, rack and mudguard mounts, Boost 148, 120 mm travel BB Standard: Bosch, Press Fit Hanger Standard: UDH Tire Clearance: 2.5″ Colors: Mercury / Dark Web; Pennyflake / Black Olive |
|---|---|
| Fork |
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 130mm travel Travel: 130mm Spring Type: Air |
| Shock |
RockShox Deluxe Select R, 210x50mm Travel: 120mm |
| Bottom Bracket |
Bosch, press-fit |
| Headset |
FSA IS-2, 1-1/8” top, 1.5” bottom |
| Stem |
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Handlebar |
Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width |
| Saddle |
Bontrager Verse P3, steel rails |
| Seatpost |
Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length; Size: M, L, XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length Type: Dropper |
| Pedals |
VP-536 nylon platform |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
| Rear Derailleur |
Shimano CUES U6000 GS |
|---|---|
| Crank |
FSA Bosch CK-220, 36T ring, 165mm length |
| Shifters |
Shimano U6000, 10 speed |
| Cassette |
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
| Chain |
Shimano LG500, 9/10/11 speed |
| Brakes |
Tektro Gemini SL 4 piston hydraulic brake Type: Tektro Gemini Hydraulic Disc |
| Rims |
Size: S, M, L, XL, Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve; Size: S, M, L, XL, Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve |
|---|---|
| Spokes |
14 g stainless steel, black |
| Front Hub |
Shimano TC500 alloy, centerlock, 110x15mm thru axle |
| Rear Hub |
Shimano TC500 alloy, centerlock, 148x12mm thru axle |
| Tires |
Size: S, Bontrager Gunnison Pro XR, Tubeless Ready, wire bead, 60 tpi, 27.5×2.40”; Size: M, L, XL, Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.40” |
| Disc Rotors |
Tektro, centerlock, 203mm |
