Description

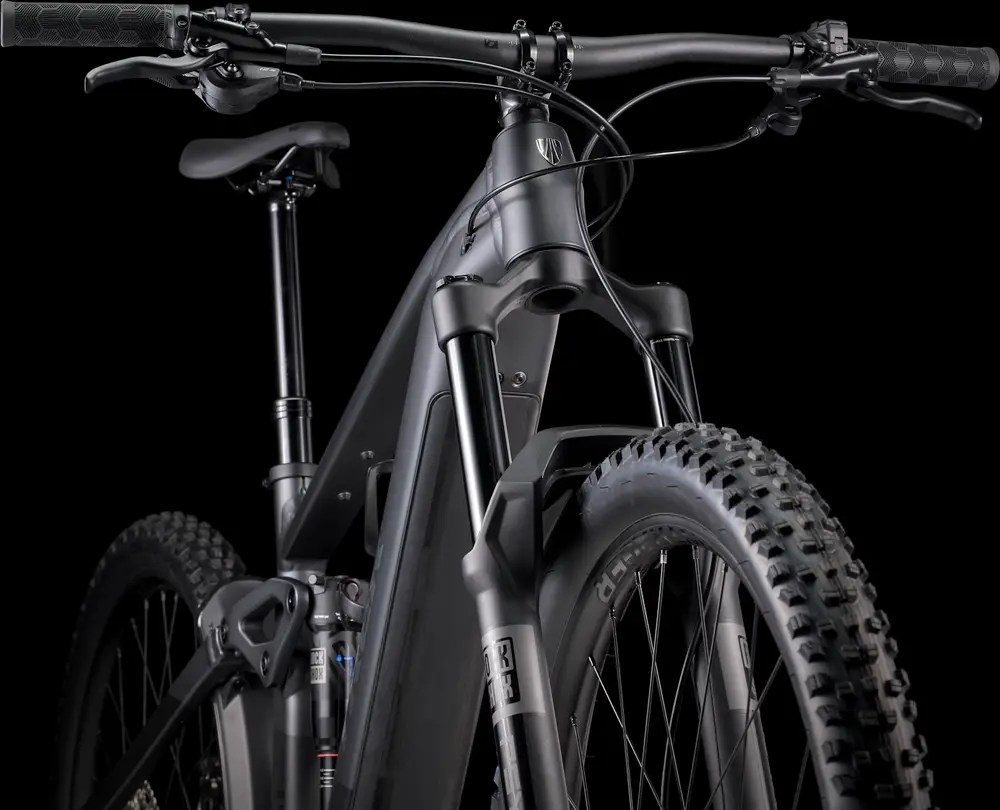

A 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range
| Frame |
Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel Hanger Standard: UDH Tire Clearance: 2.6″ Colors: Lithium Grey; Viper Red |
|---|---|
| Fork |
RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160mm travel Travel: 160mm Spring Type: Air |
| Shock |
RockShox Deluxe Select+ RT, 205mm x 65mm Travel: 160mm |
| Headset |
Integrated cartridge bearing, 1-1/8” top, 1.5” bottom, angle adjust cup compatible |
| Stem |
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle |
Bontrager Verse P3, steel rails |
| Seatpost |
Size: S, TranzX JD-YSI34, 100mm travel, internal routing, 34.9mm; Size: M, L, XL, TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm Type: Dropper |
| Pedals |
VP-536 nylon platform |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
| Rear Derailleur |
Shimano Deore M6100, long cage |
|---|---|
| Crank |
E*thirteen E*spec Plus, 160mm length |
| Shifters |
Shimano Deore M6100, 12 speed |
| Cassette |
Shimano Deore M6100, 10-51, 12 speed |
| Chain |
Shimano Deore M6100, 12 speed |
| Brakes |
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper Type: Shimano Hydraulic Disc |
| Rims |
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve |
|---|---|
| Front Hub |
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Tires |
Size: S, M, L, XL, Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5×2.40”; Size: S, M, L, XL, Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5×2.50”; Size: M, L, XL, Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29×2.40”; Size: M, L, XL, Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.50” |
| Disc Rotors |
Shimano RT66, 6-bolt, 203mm |
| Motor |
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
|---|---|
| Battery |
Bosch PowerTube 800Wh, smart system Recycling Program: |
| Remote |
Bosch System Controller BRC3100, smart system |
| Charger |
Bosch standard 2A, 110V, smart system |
| Fenders |
Trek 27.5″ custom fender |
|---|
