Description

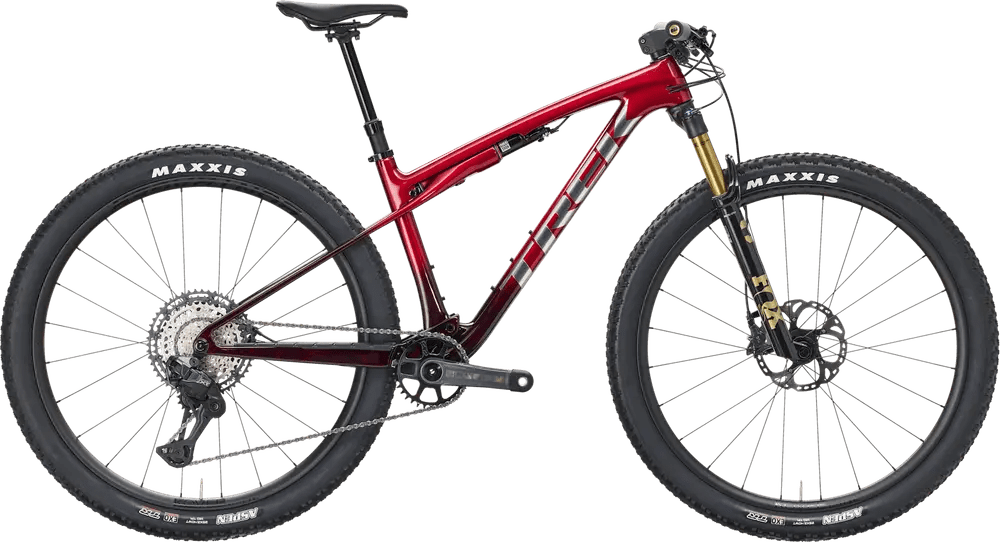

A 29″ carbon frame full suspension crosscountry bike with ultra high-end components.
| Frame |
SLR OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel Hanger Standard: UDH Tire Clearance: 2.4″ Colors: Navy Smoke; Carbon Smoke / Galactic Grey Marble; Red Smoke / Drizzle |
|---|---|
| Fork |
Fox Factory 34 SL, Float EVOL air spring, GRIP SL 2- position damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 110mm travel Travel: 110mm Spring Type: Air |
| Shock |
Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper Travel: 80mm |
| Bottom Bracket |
E*thirteen BB20-92 |
| Headset |
FSA IS-2, 1-1/8” top, 1.5” bottom |
| Saddle |
Aeolus RSL, carbon rails, 145mm width |
| Seatpost |
Size: S, M, Fox Transfer SL, 100mm travel, internal routing, 31.6mm; Size: ML, L, Fox Transfer SL, 125mm travel, internal routing, 31.6mm; Size: XL, Fox Transfer SL, 150mm travel, internal routing, 31.6mm Type: Dropper |
| Rear Derailleur |
Shimano XTR Di2 M9250, long cage |
|---|---|
| Crank |
Size: S, M, ML, E*thirteen Helix Race Carbon, 34T, 55mm chainline, 170mm length; Size: L, XL, E*thirteen Helix Race Carbon, 34T, 55mm chainline, 175mm length |
| Shifters |
Shimano XTR Di2 M9250, 12 speed |
| Cassette |
Shimano XTR M9200, 10-51, 12 speed |
| Chain |
Shimano Dura-Ace/XTR M9100, 12 speed |
| Brakes |
Shimano XTR M9200 hydraulic disc Type: Shimano XTR Hydraulic Disc |
| Rims |
Front: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CenterLock, Boost110, 15mm thru axle, 29”, Rear: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, Centerlock, Boost148, 12mm thru axle, 29” |
|---|---|
| Tires |
Maxxis Aspen, Tubeless Ready, EXO casing, folding bead, 29×2.4” |
| Disc Rotors |
Size: S, M, ML, L, XL, Shimano MT900, 180mm; Size: S, M, ML, L, XL, Shimano MT900, centerlock, 160mm |
