Description

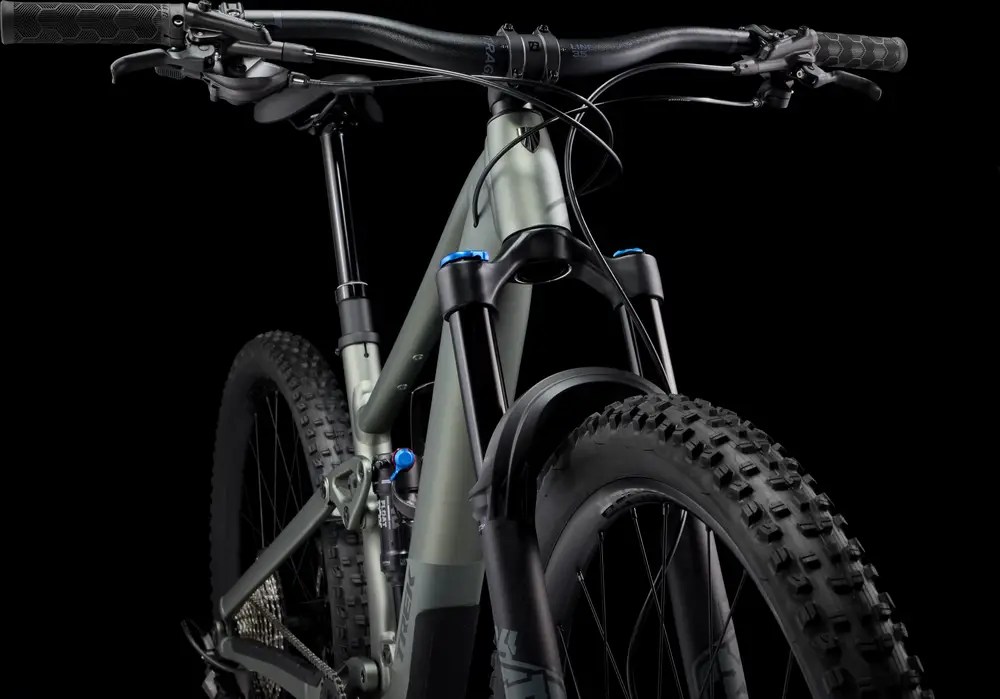

A 29″ aluminum frame full suspension trail bike with upper mid-range components.
| Frame |
Alpha Platinum Aluminum, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.5″ Colors: Matte Dark Web; Lichen Green |
|---|---|
| Fork |
Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 130mm travel Travel: 130mm Spring Type: Air |
| Shock |
Size: S, M, ML, L, XL, Fox Performance Float, 185mm x 50mm; Size: S, M, ML, L, XL, Fox Performance Float DPS, 2-position damper, 185mm x 50mm Travel: 120mm |
| Bottom Bracket |
Shimano BB-MT501 BSA |
| Stem |
Bontrager Elite, 35mm, 0 degree, 45mm length |
| Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
| Saddle |
Bontrager Verse P3, chromoly rails |
| Seatpost |
Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length; Size: M, ML, L, XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Type: Dropper |
| Grips |
Size: S, M, ML, L, XL, Bontrager XR Trail Comp, nylon lock-on; Size: S, M, ML, L, XL, Trek Line Comp, nylon lock-on |
| Rear Derailleur |
Shimano XT M8100, long cage |
|---|---|
| Crank |
Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length |
| Shifters |
Shimano XT M8100, 12 speed |
| Cassette |
Shimano SLX M7100, 10-51T, 12 speed |
| Chain |
Shimano SLX M7100, 12 speed |
| Brakes |
Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper Type: Shimano Deore Hydraulic Disc |
| Rims |
Front: Size: S, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5”; Size: M, ML, L, XL, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29”, Rear: Size: S, Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 27.5”; Size: S, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 27.5”; Size: M, ML, L, XL, Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29”; Size: M, ML, L, XL, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29” |
|---|---|
| Tires |
Size: S, Bontrager Gunnison Pro XR, Tubeless Ready, wire bead, 60 tpi, 27.5×2.40”; Size: M, ML, L, XL, Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.40” |
| Disc Rotors |
Shimano RT66, 6-bolt, 180mm |
